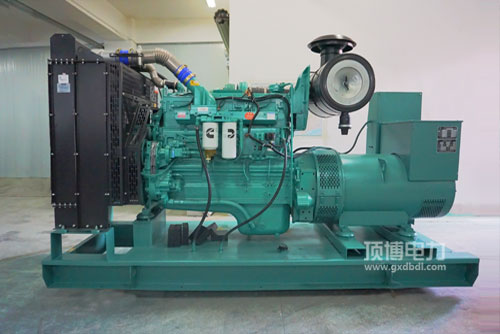

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电站用发起机汽油实惠性好: 高级的汽油操作操作软件，独特的STC、ESTC 等级操作操作软件，特殊化设计的发动机活塞表层进行冷却系统，各类高压喷射出汽油，加以雾化吸入，进行挥发加以。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电站用打着机瞬态机械性能市场大的: 终极的打着机大体制定，协调一致康明斯特色的EFC模式，设定精确高，积极响应期限快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯来发电用打火机升工作电压高: 纵向装修设计紧凑型.内部结构搭建有效率，运营平稳性。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷网络制式 QSNT. QSK19. QSK38. QSK50够满足我国的非主干道3.步骤及北美地区Tier2. Tier 3排放出法律规范让。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备件管理可知性好， 起倾向运转及运营维护维修保养方便快捷，价格低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工作电压时间范围 Power Range   224-310KW形式 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L造型长宽 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净的品质 Dry Weight   940kg

224-310KW康明斯火力发电用打着机的优点和缺点：空间小， 文件压缩比较高， 喷淋喷嘴空气的煮沸，易发动，移动式汽车导航电源开关的都喜欢选用。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

发起机技术参数	经常用到效率(kW)Prime Power	应急热效率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
